LCM ENIG Treadmill Motor Controller Pcb Board Assembly Double Side

Ask Lasest Price
Brand Name :	IBE
Model Number :	IBE-9259
Certification :	ISO 9001,ISO14001,UL
Price :	USD1.49 unit
Payment Terms :	T/T, L/C
Supply Ability :	100000sqm each month
Delivery Time :	2-3 weeks

Add to Cart

Product Details
Company Profile

LCM ENIG Treadmill Motor Controller Pcb Board Assembly Double Side

2 layers PCB LCM Double Side Manufacturer PCB Assembly treadmill control board

1	Material	PR4,Tg140
2	Board Thickness	1.0mm+/-10%
3	Surface Finish	ENIG
4	PCB Panel Size	120*180/1
5	Layer	2
6	Min. Drill Hole Size	0.1mm
7	PCB QC	Electrical test and automatically hole inspection; Appearance automatic detection
8	Application	wireless charger
9	Additional	half hole

1/ mature and stringent Quality policy
2/100% AOI, 100% ET, 100% FQC + FQA
3/SPC and Cpk programs
4/Lean Manufacturing and 6S programs
5/Advanced inspection and lab equipment
6/Standard QA report with every shipment
7/RoHS and REACH Compliance
8/Conflict Minerals Compliance

IBE provide High quality and super service to provide quick turn and mass production on rigid PCB:

Technical Capability of rigid PCB

Item

Mass production

Small batch production

Number of Layers

UP TO 18L

UP TO 36L

Laminate

FR-4,Halogen free, High TG,Cem-3,Al/copper based,high frequency

Maximum board size

610*460mm

1200*600mm

Board thickness

0.3-3.5mm

0.2-6.0mm

Minimum line width/space

3/3 mil

Minimum line/space tolerance

+/-20%

+/-10%

Max.Outer layer copper thickness

140um

210um

Max.Inner layer copper thickness

105um

175um

Min. finished hole size(Mechanical)

0.2mm

0.15mm

Min. finished hole size (laser hole)

0.075mm

Aspect ratio

10:1

12:1

Solder Mask Color

Green, Blue, Black,White,Yellow,Red

Impedance control Tolerance

<=+/-10%

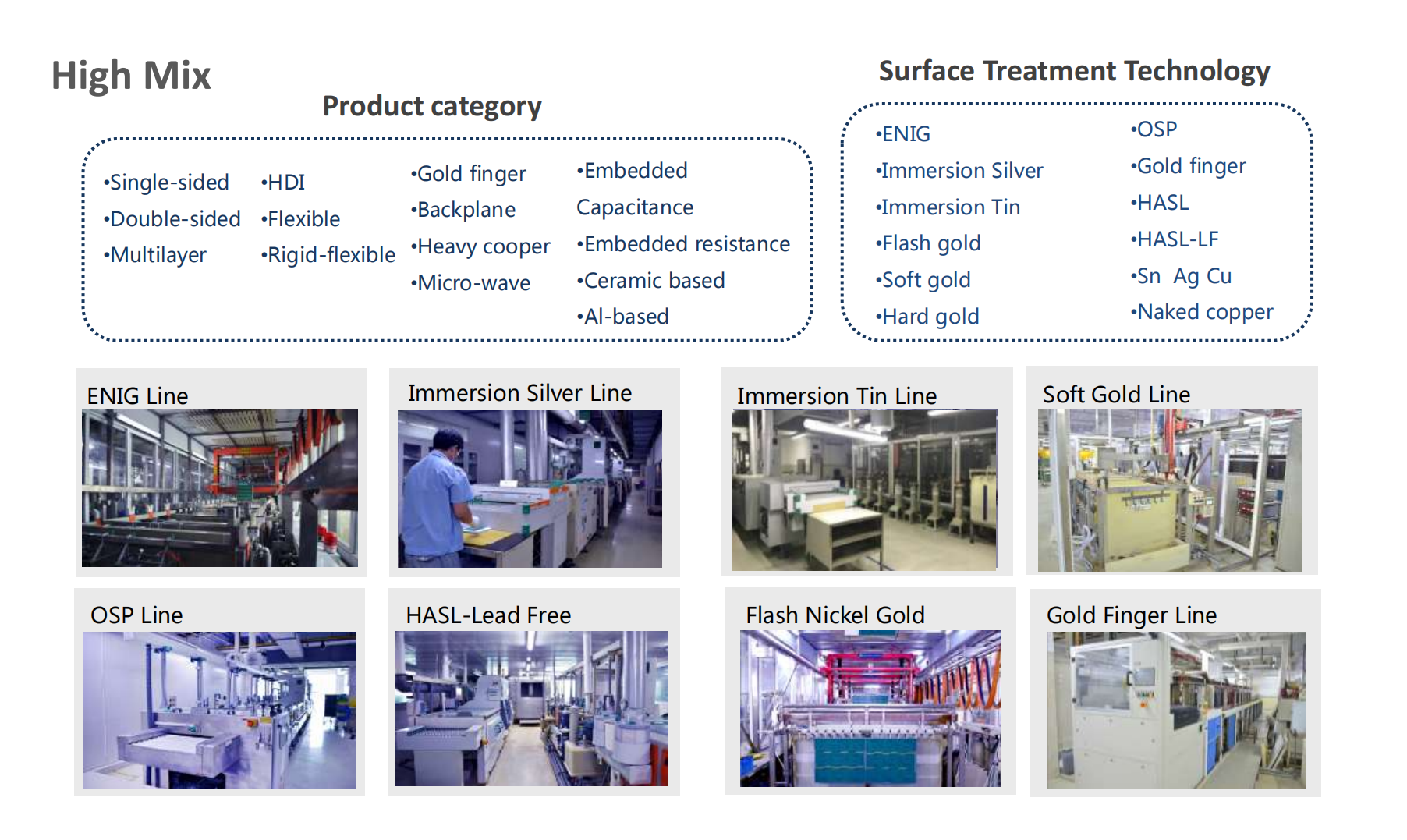

Surface treatment

Flash Gold

0.025-0.075um

0.025-0.5um

Immersion Gold

0.025-0.1um

0.1-0.2um

Sn/Pb Hasl

1-40um

Leadfree Hasl

1-70um

Immersion Silver

0.08-0.3um

OSP(Entek)

0.2-0.4um

Gold Finger(Hard Gold Plating )

10u''-50u''

Other surface treatment also available such as Nickel palladium

BE Focus on one stop solution

Advanced Equipment

We pay attention on Environment

Product Tags:

ENIG Treadmill Motor Controller Pcb Board

LCM ENIG PCB Board Assembly

Double Side lcm pcb Board Assembly

LCM ENIG Treadmill Motor Controller Pcb Board Assembly Double Side
