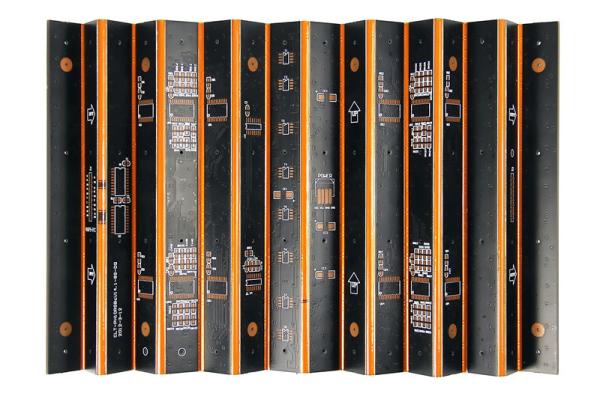

China FPC 2-Layer Flexible Circuit Boards Flex PCB High Quality
Printed Circuit Board Manufacturer
The main SMT production line consists of automated high-precision
state-of-the-art equipments from PanasonIC,Sumsung, Japan total 6
lines (Smallest SMT components size can reach to 0201,capable of
0.6mm*0.3mm ~ 50mm*50mmQFP, 0.15mm gap, ±0.05 accuracy ),
EMS capacity can reach 150,000,000 components per month.
Our engineering team has extensive experience in DFM/DFA/DFT
technologies.
SMT, BGA Rework, Re-balling, X-Ray are all readily achieveable.
Stencils can
be cut and delivered inside of 4 hours.
| PCB Manufacturing Capability |
| PCB Layers: | 1Layers to 18 layer (Max) |
| Board thickness: | 0.13~6.0mm |
| Min line width/space: | 3mil |
| Min mechanical hole size: | 4mil |
| Copper thickness: | 9um~210um(0.25oz~6oz) |
| Max aspect ratio: | 1:10 |
| Max board size: | 400*700mm |
| Surface Finish: | HASL, immersion gold, immersion silver,immersion tin, flash gold,
gold finger,peelable mask |
| Material: | FR4,High Tg, Rogers, CEM-1, CEM-3, Aluminum BT, PTFE. |
| |
| PCB Assembly Capability |
| Stencil size range: | 1560*450mm |
| Min SMT package: | 0402/1005(1.0x0.5mm) |
| Min IC pitch: | 0.3mm |
| Max PCB Size: | 1200*400mm |
| Min PCB thickness: | 0.35mm |
| Min Chip Size: | 01005 |
| Max BGA Size: | 74*74mm |
| BGA Ball Pitch: | 1.00~3.00mm |
| BGA Ball Diameter: | 0.4~1.0mm |
| QFP Lead Pitch: | 0.38~2.54mm |
| Testing : | ICT,AOI,X-RAY,Funtional test etc. |
FAQ:1.How does a printed circuit board assembly (PCB assembly) work?
The primary function of a PCB assembly is to integrate the
electronic components of a device into a compact or defined space.
Acting as the central hub of the electronic circuit of a device,
the PCB provides insulation for all other electrical components,
allowing them to be safely connected to a power source. 2. What information is required for a turnkey PCB assembly order?
For turnkey projects, we’ll need the following:
Gerber file
Bill of materials (BOM)
Component placement list (CPL)
All relevant CAD and .stp file
3. Are you UL / Underwriters Laboratory approved?
IBE pursues all applicable UL certifications for our products, and
we offer several products certified with UL and CSA based on
customer’s demand
Underwriters Laboratories (UL) grants multiple certifications,
including:
IBE is certified for PCB by UL file E326838
4. Do you offer RoHS&REACH-compliant assemblies?
Yes, IBE does offer assemblies that comply with the European
Union’s Restriction of Hazardous Substances (RoHS) Directive and
REACH.
5. Do you offer testing and inspection services?
Yes, IBE offers a comprehensive list of testing and inspection
services for both SMT and through-hole assemblies.
Visual inspection/scanning microscopes
AOI inspection
In-circuit test
Functional testing include automated test equipment and system
Burn-in tests
Low/High Temp Chamber Testing
X-ray inspection and repair
Salt fog tester
Drop Test
packing vibration
Conformal coating and potting
6. What are your PCB assembly standards?
IBE has obtained the following IPC electronics industry standards
for PCB assembly
IPC-A-600G for PCB production
IPC-620 for practices and requirements for cables, wire, and
harness assembly manufacturing
IPC-A-610E PCBA Acceptability of Electronic Assemblies
7.Can you ship to my contract manufacturer for the final build?
Yes, we can ship your assemblies for final production. We can also
offer turnkey,
box build, and labor-only services
8.Where do you manufacture your products?
We have production plant based in shenzhen,China; Fremont,US,Bac
Ninh,Vietn
